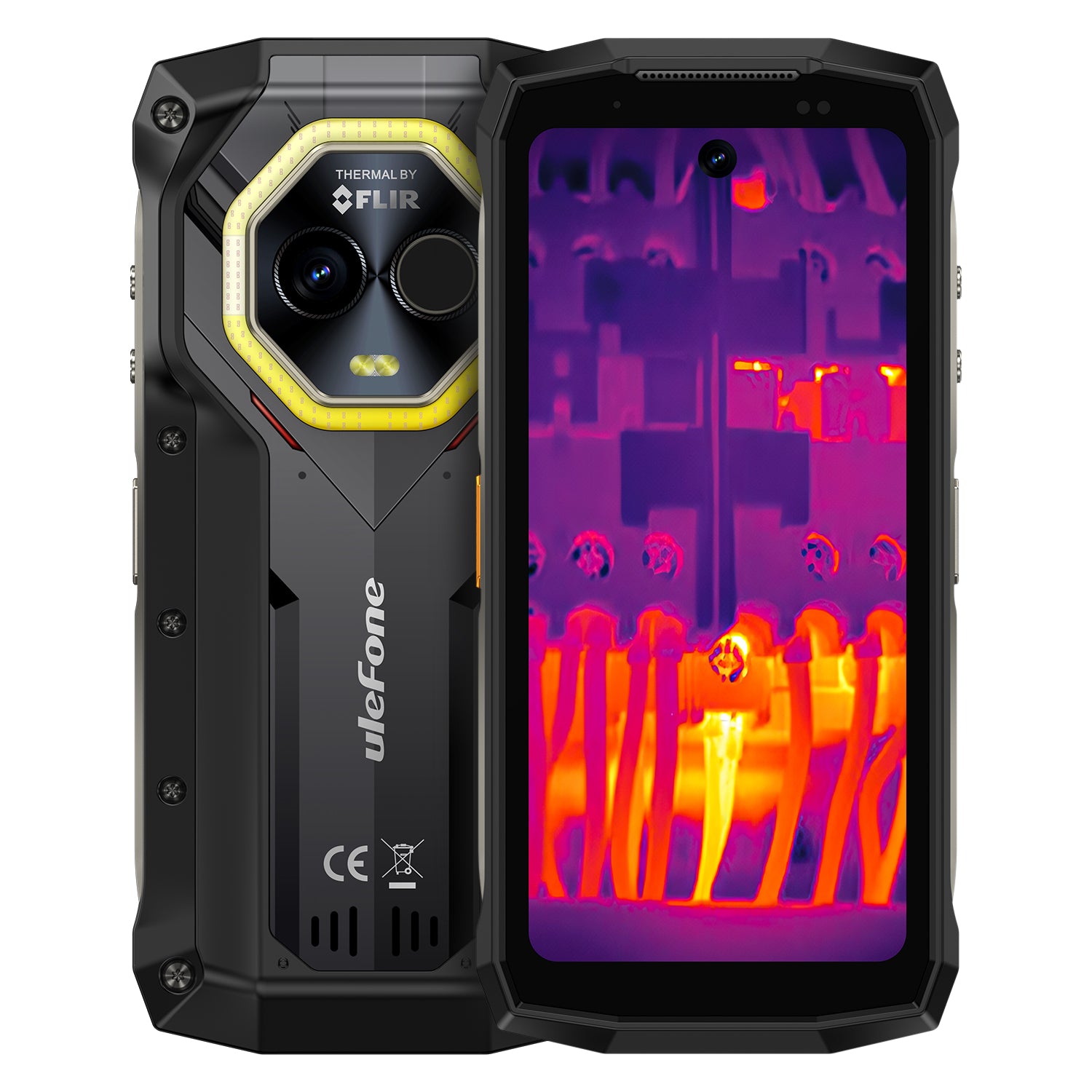

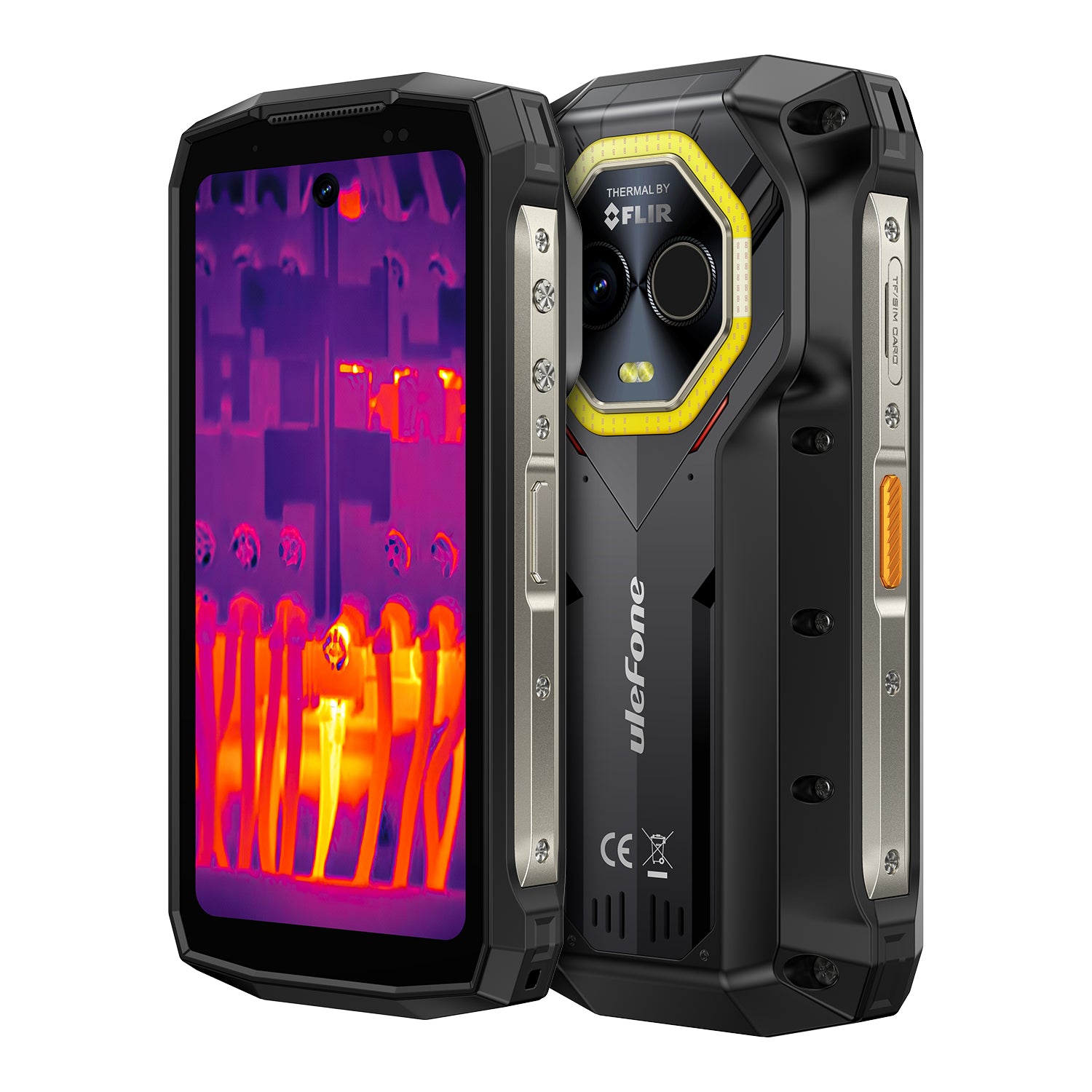

Ulefone Armor Mini 20T Pro with 5G and Thermal Imaging

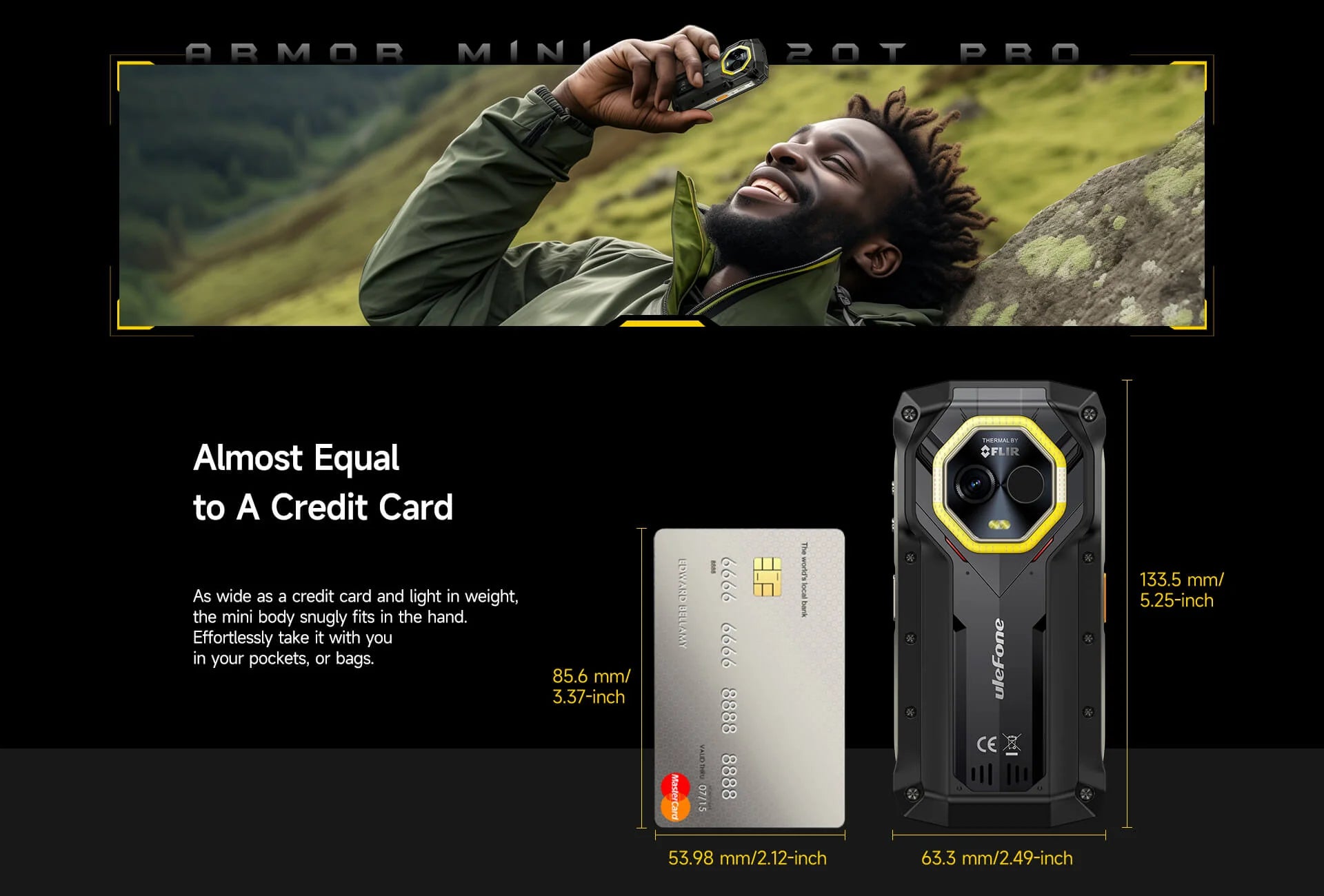

Size and Weight

Height: 133.5 mm

Width: 63.3 mm

Depth: 24.9 mm

Weight: 301 grams

*Size and weight vary by configuration and manufacturing process. Actual measurements between individual products may vary. All specifications are subject to the actual product.

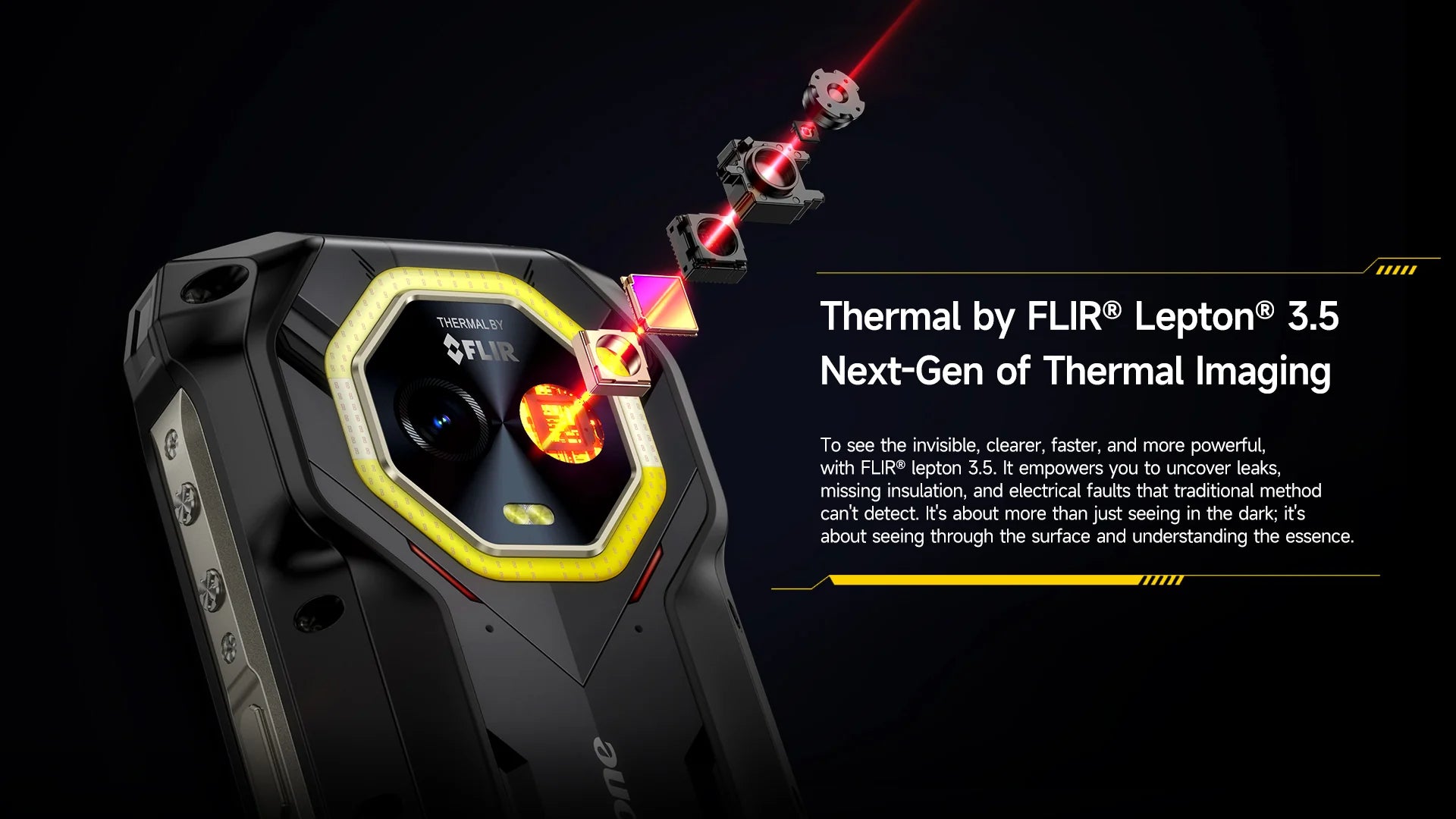

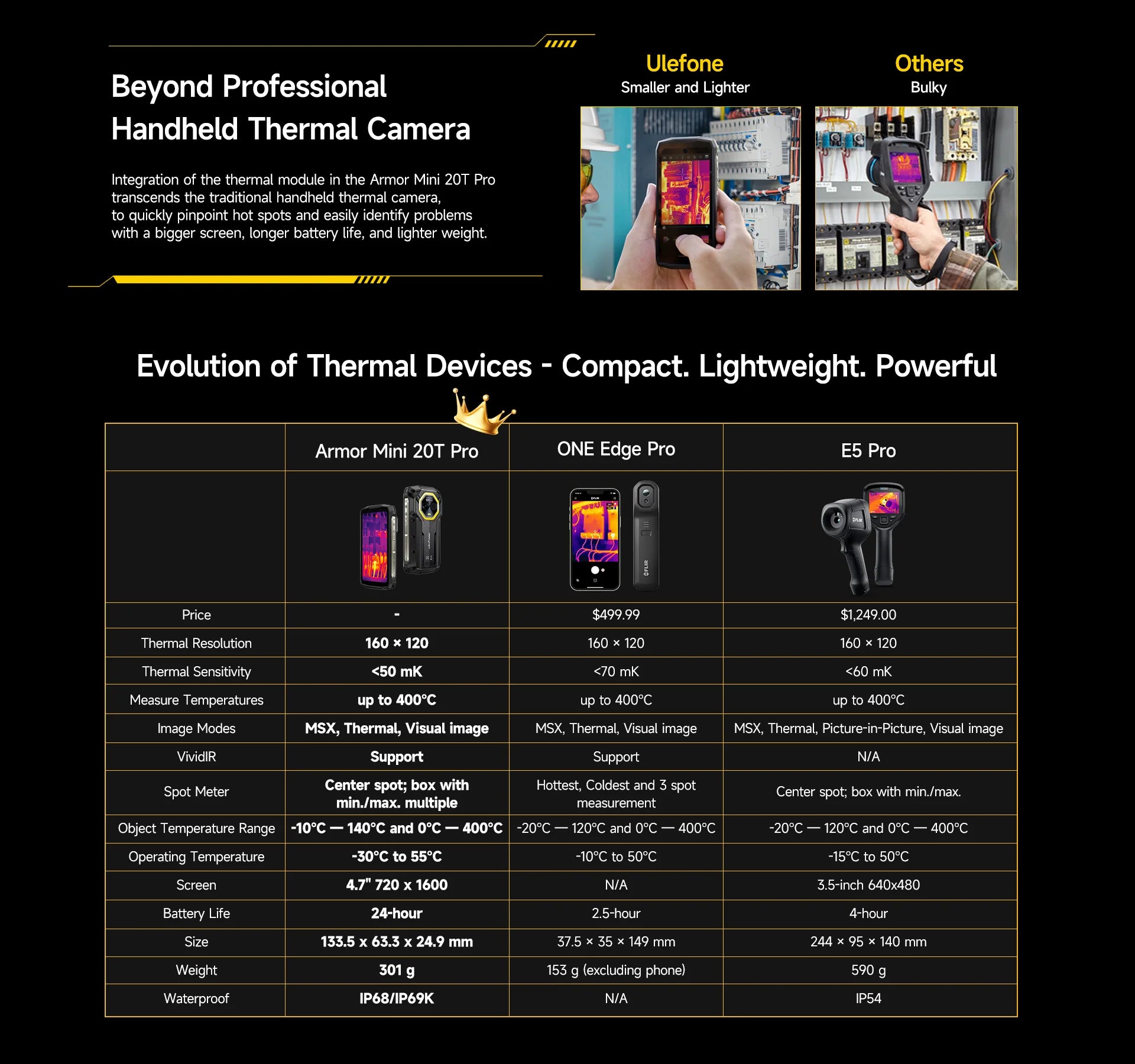

Thermal Imaging

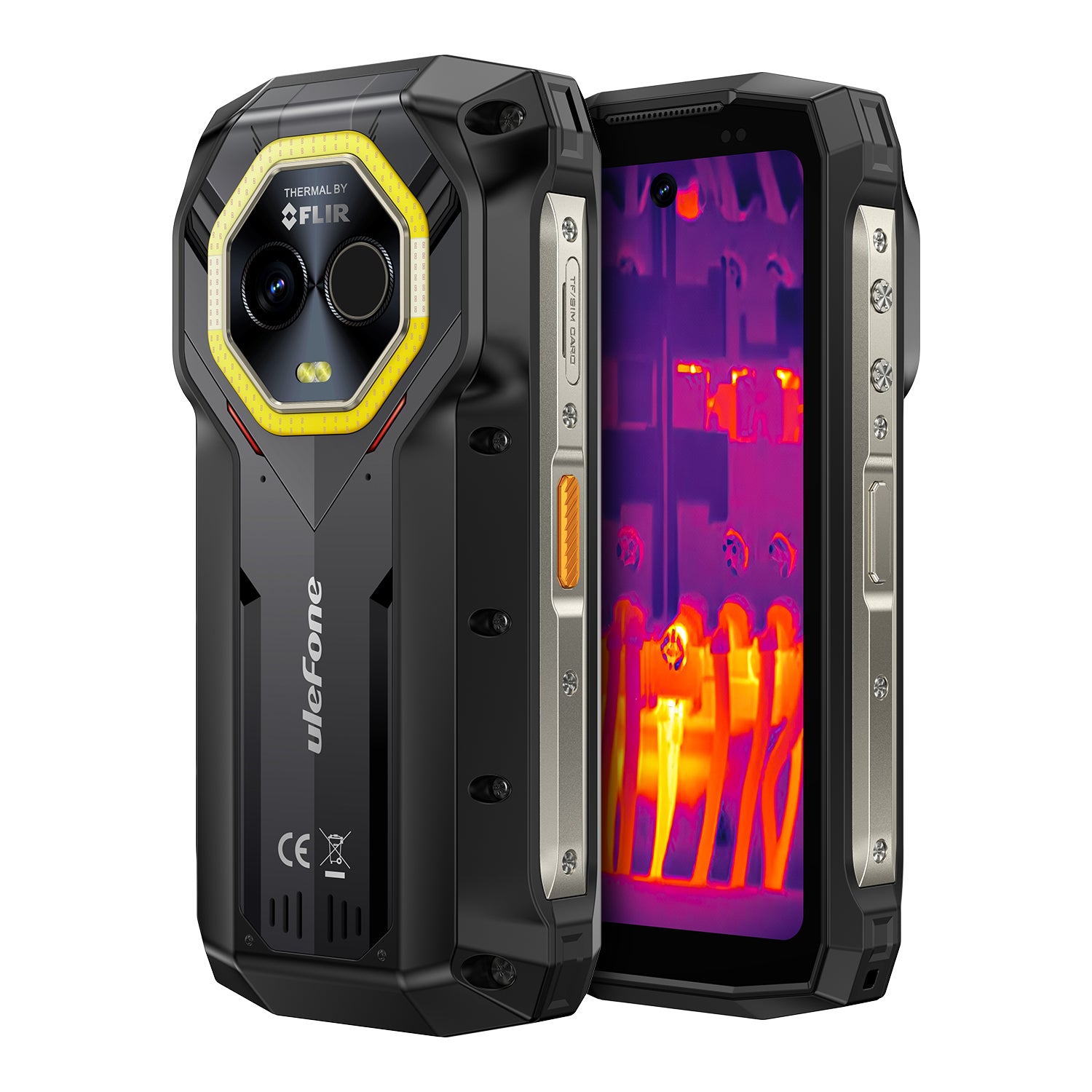

Integrated FLIR Thermal Imaging

Thermal Resolution: 160x120

Frame Rate: 8.7Hz

Pixel Pitch: 12μm

Sensitivity: < 50mk

Measurable Temperature Range: -10°C to 450°C

Accuracy: ±3℃

Visualizes heat that is invisible to the naked eye, highlighting temperature contrasts.

Pre-install MyFLIR Pro App

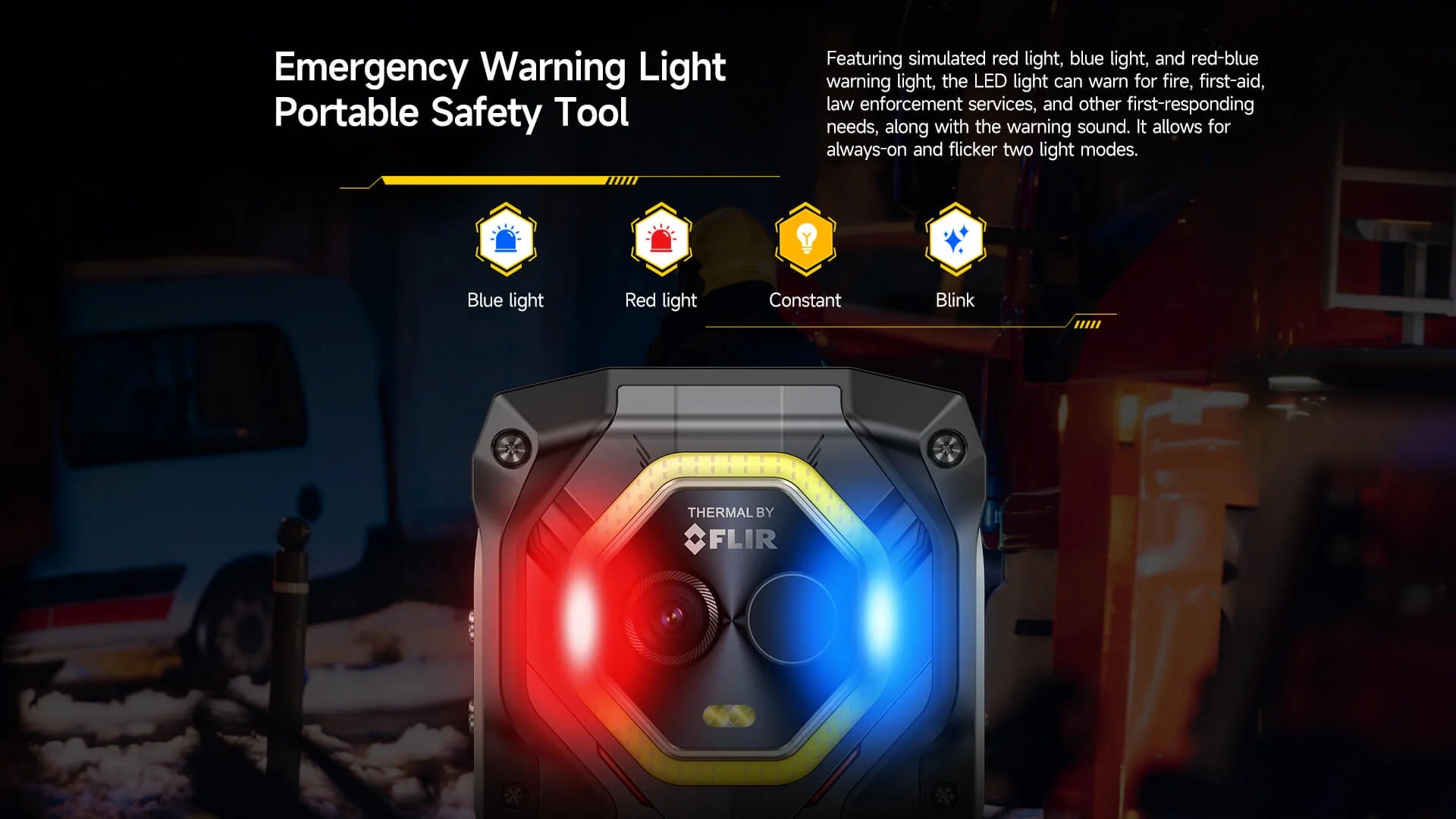

Warning Light

Red light, blue Light, red-blue light

Simulated warning sound: fire, ambulance, police car, and other first responding warning sound

Lighting modes: 2, constant or blink

Versatile Light

500 Max Lumens

130 LEDs

5W Max Power

IPX8 Waterproof

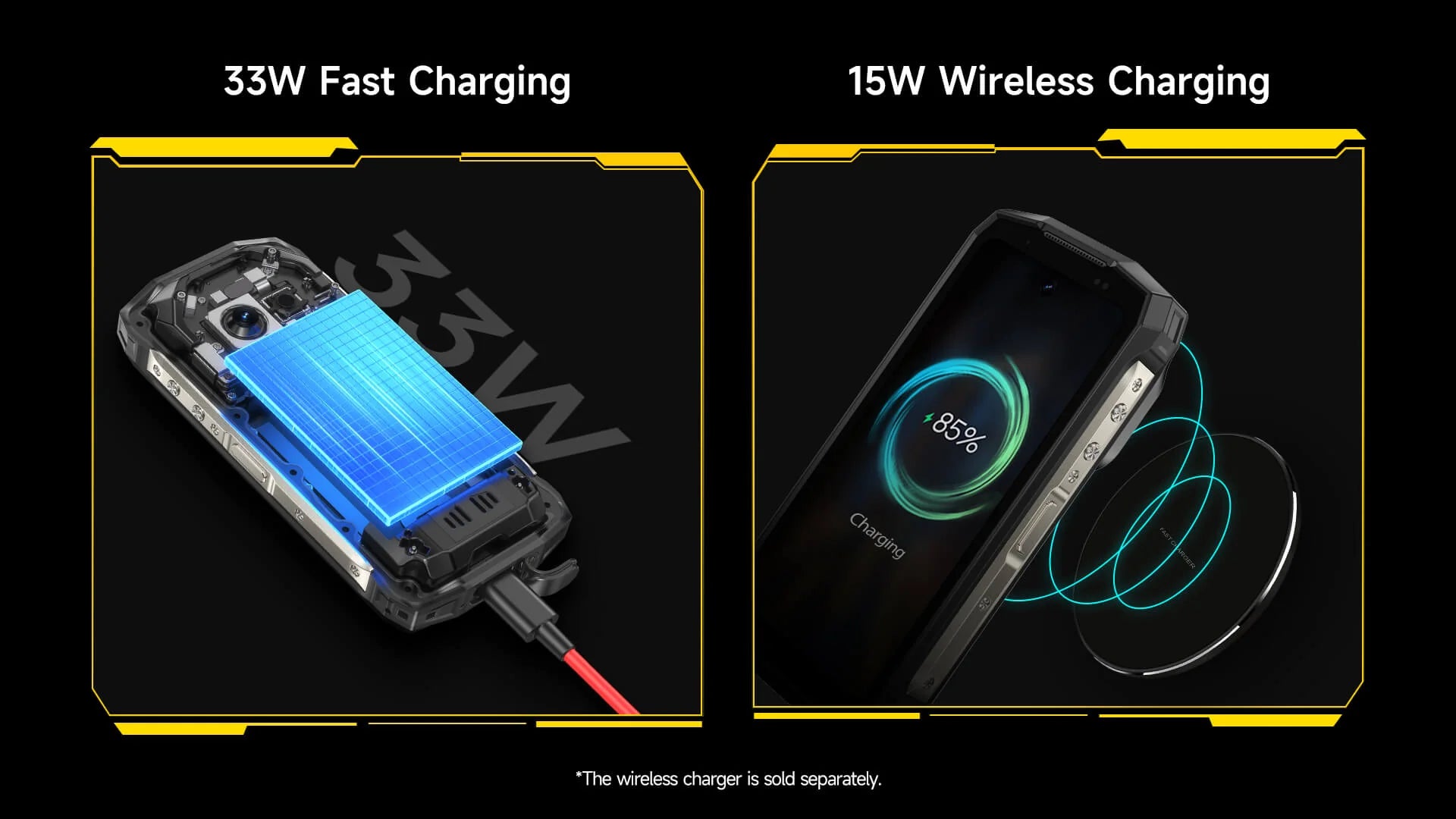

Charging and Battery

6200mAh Battery

Built-in lithium-ion polymer battery

USB Type-C port

Supports 33W fast charging

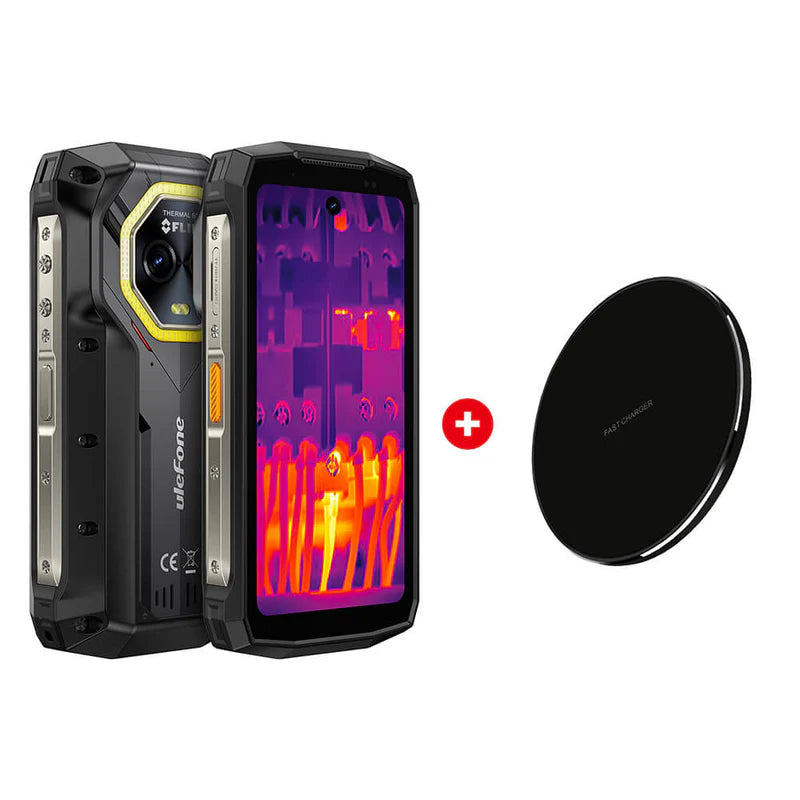

Supports 15W wireless charging

Supports wireless reverse charging

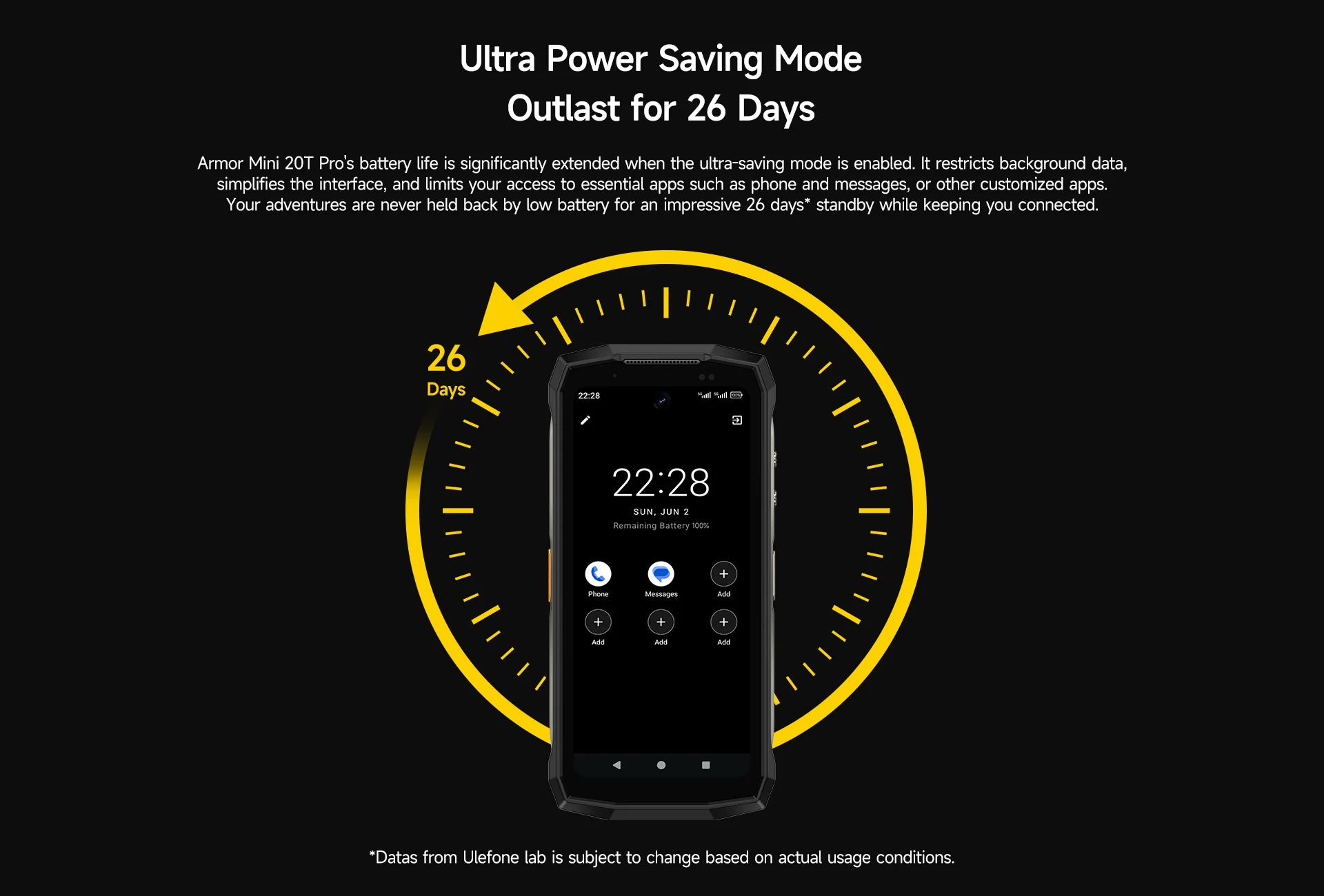

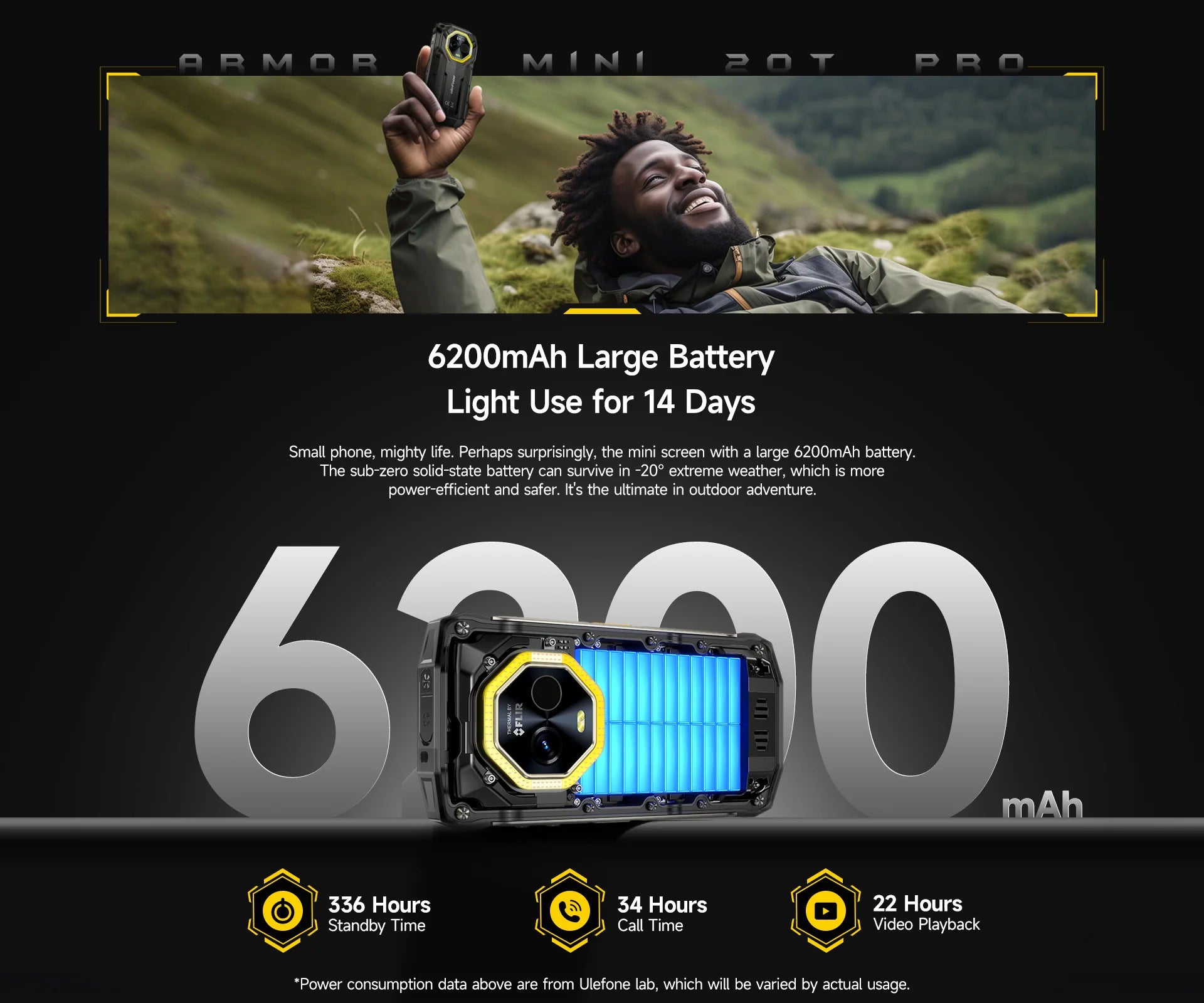

Battery Life

Standby Time	Up to 336 Hours
Talk Time	Up to 34 Hours

*Typical value. Actual capacity may vary slightly. This capacity is the nominal battery capacity. The actual battery capacity for each individual product may be slightly above or below the nominal battery capacity.

Rugged

Splash, Water and Dust Resistant

Rated IP68 (maximum depth of 2.0 metres up to 30 minutes) under IEC standard 60529

Rated IP69K under IEC standard 60529

MIL-STD-810H Certification

*Armor Mini 20T Pro is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum depth of 2.0 meters up to 30 minutes).

*Charger and accessories are not water-resistant.

*Splash, water and dust resistance are not permanent and might decrease as a result of normal wear.

*Do not attempt to charge a wet Armor Mini 20T Pro.

*Liquid damage not covered under warranty.

Processor

MediaTek Dimensity 6300

CPU: MediaTek MT6835T

CPU architecture: 2*Cortex-A76+6*Cortex-A55, 6nm process

CPU frequency: Octa Core, up to 2.4GHz

GPU: Arm Mali-G57 MC2

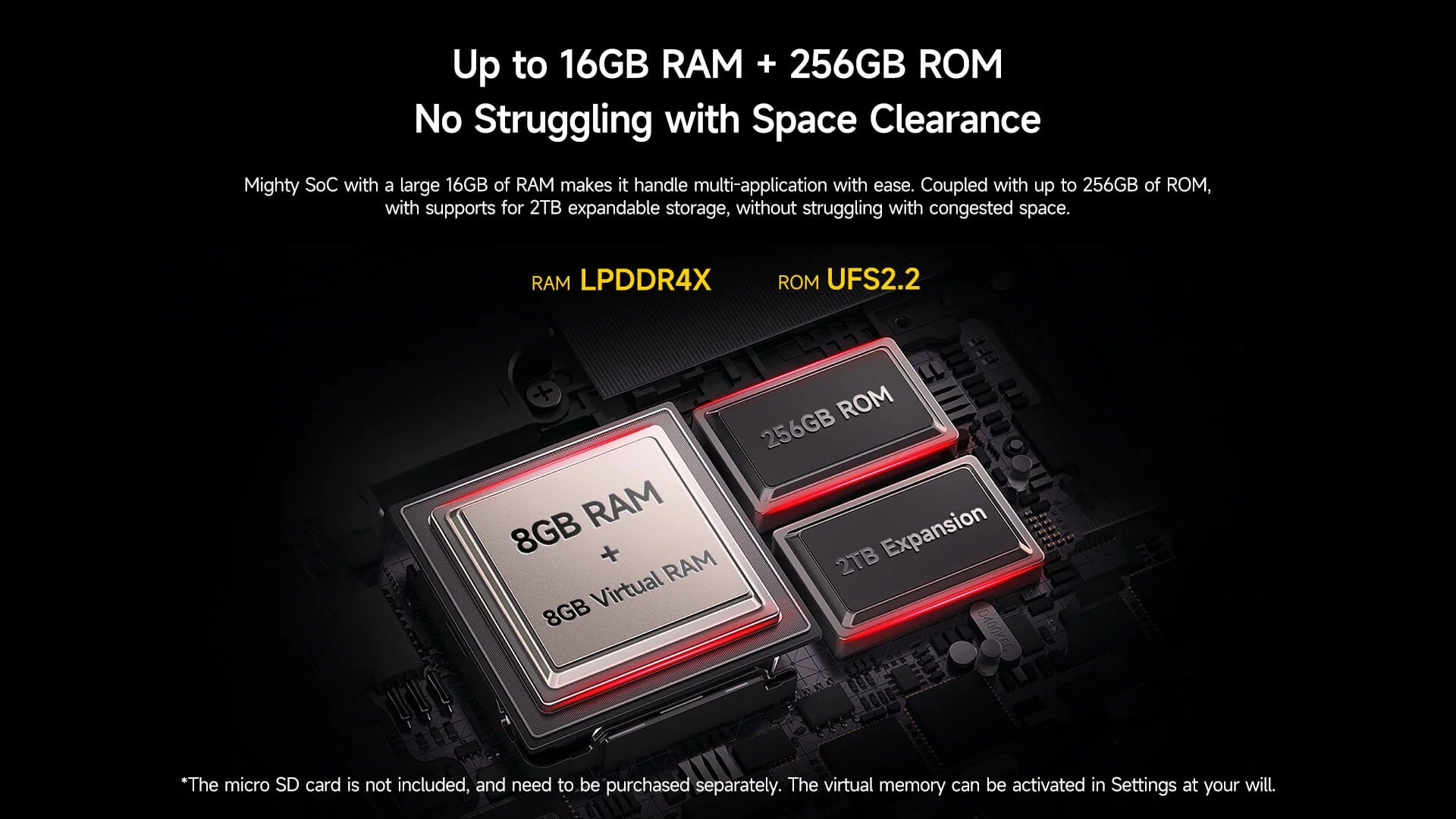

Storage and RAM

8GB+256GB

RAM: 8GB large memory, LPDDR4X

Flash storage: 256GB phone storage, UFS 2.2

microSD memory card Up to 2TB

*Available storage and RAM are less than the total memory due to storage of the operating system and software pre-installed in the device.

*The Virtual Memory Expansion can be activated in Settings and adds up to 8GB of RAM. Some software may not be compatible with this feature.

*microSD card needs to be purchased separately. Recommended to use Class 10 memory cards, other memory cards are not guaranteed to be fully compatible.

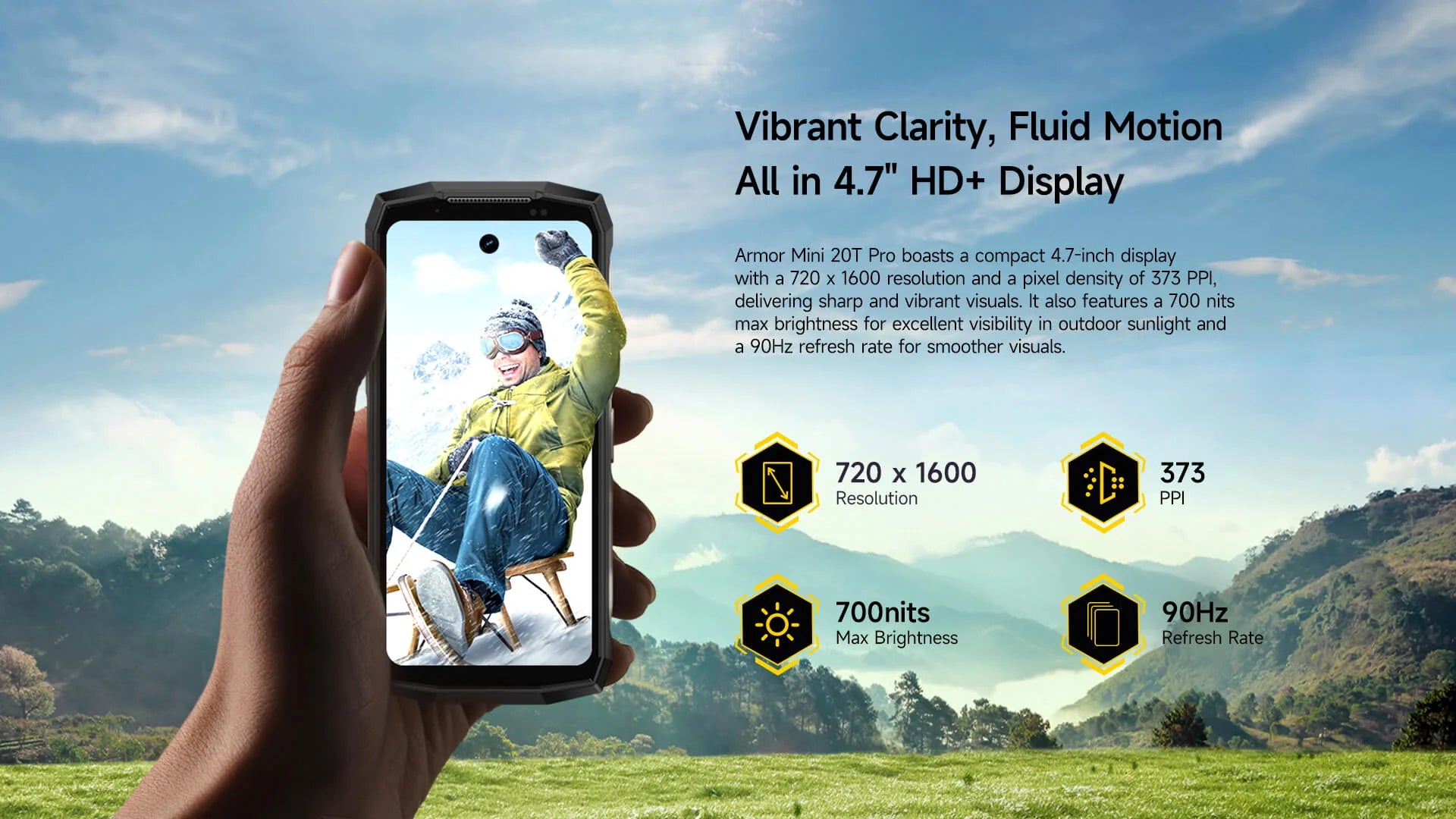

Display

4.7‑inch (diagonal)

Punch-hole Display

All-screen LCD Multi-Touch display with IPS technology

20 : 9, 720 x 1600 HD+

373 ppi

Refresh rate:

Underwater Photography

Supports to take photos & video recording

Supports to start/end operation underwater

Supports to quickly switch shooting modes underwater

Unlock Options

Supports Fingerprint Unlock

Side-Mounted Fingerprint, Integrate power key and fingerprint sensor together

Capacitive Touch Sensor

Response speed: Up to 0.1s

Supports the enrollment of 5 sets of fingerprint

Supports Face Unlock

Network

Supports use of dual SIM cards from different carriers

Both cards can access 5G connectivity simultaneously

Dual Nano SIM; either card can be set as the primary card

Supports 5G/4G/3G/2G

Supports VoLTE HD calling

Supported network bands

5G Network

NR Sub6: N1/2/3/5/7/8/20/25/28/38/40/41 66/71/77/78/79

4G Network

LTE-FDD: B1/2/3/4/5/7/8/12/13/17/18/19 20/25/26/28A/28B/66/71

LTE-TDD: B32/34/38/39/40/41

3G Network

WCDMA:B1/2/4/5/6/8/19

2G Network

GSM:B2/3/5/8

CDMA:BC0/BC1/BC10

*Dual 5G SIM requires the support of local telecom operator services, and may not be available in all regions.

* Only certain regions and telecom operators support VoLTE.

Connectivity

WLAN

Supports protocols: 802.11 a/ac/b/g/n

Supports 2.4G/5G

Bluetooth

Supports Bluetooth 5.2

Navigation and positioning

Supports multiple positioning systems

GPS

GLONASS

Galileo

BEIDOU

QZSS

Supports Digital Compass

NFC

Supports Google Pay

Supports Transit, Loyalty Cards, Gift Cards and Plane tickets

*Supported by Google Pay, you should download Google Pay to use it. Google Pay available countries and regions please refer to https://pay.google.com/about.

Operating System

Android 14

Pure Android System

No ads

Buttons

Sensors

Thermal imaging sensor, Infrared sensor, NFC, Proximity sensor, Light sensor, Gravity sensor, Acceleration sensor, Geomagnetic sensor, Gyro sensor, Coulomb counter, Pedometer, Air pressure sensor

Multimedia

Video	MOV/MKV/3GP/MP4
Audio	MID/FLAC/MKA/MP3/M4A AAC/AMR/OGG/MP2
Image	GIF/JPEG/PNG/BMP
Ebook	TXT/HTML

Ports

USB 2.0, Type-C

3.5 mm Headphone Jack

Card slot

Two(2), Nano SIM + Nano SIM / microSD

Notification Light

Support, tri-color light, red/green/blue

Supports charging prompt

Language support

Indonesian, Malay, Catalan, Czech, Danish, German, Estonian, English, Spanish, Filipino, French, Croatian, Italian, Latvian, Lithuanian, Hungarian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Finnish, Swedish, Vietnamese, Greek, Turkish, Bulgarian, Russian, Serb, Ukrainian, Armenian, Hebrew, Urdu, Arabic, Persian, Hindi, Bengali, Thai, Korean, Burmese, Japanese, Simplified Chinese, Traditional Chinese

In the box

1 x Armor Mini 20T Pro

1 x AC power charger (100~240V)

1 x Type-C to Type-C Data cable (100cm)

1 x Protective Film (Pre-installed)

1 x Tempered Glass Screen Protector

1 x SIM needle

1 x Lanyard

1 x Multi-language user manual

1 x Multi Function Instruction card

1 x Warranty card

1 x Charging Instruction card

1 x Safety Prompt card

1 x Accesories Ecosystem Brochure

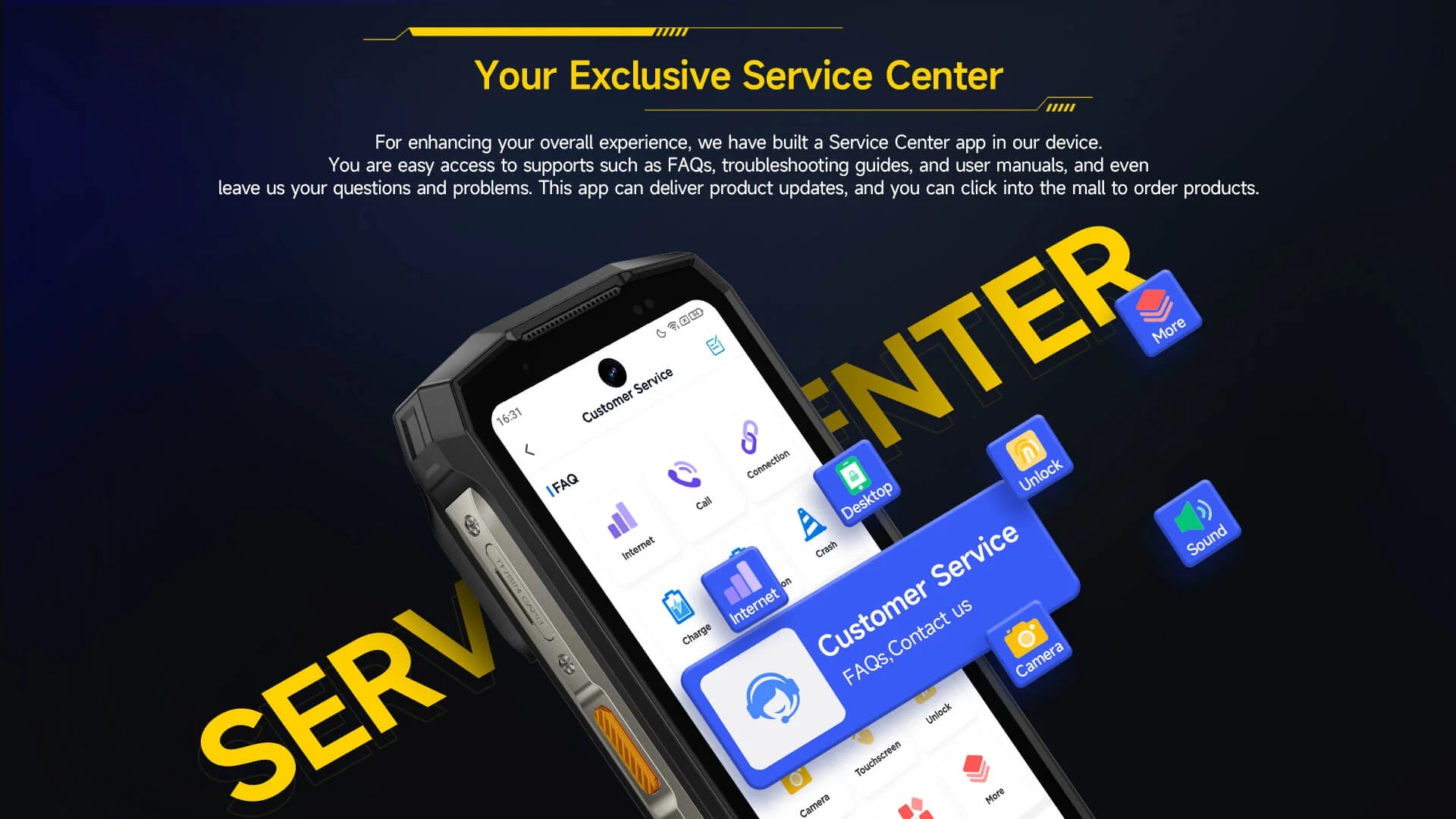

1 x Service Center APP Instructions

1 x Thermal Imaging User Manual

*The AC power charger's plug type varies according to your region, with optional standard EU/AU/US plugs available.

*May vary in different market. Subject to the actual product.

*The appearance of package and accessories may be different, but the function remains the same, please refer to the actual.

The phone pictures and screen content on the above are for illustration only. The actual phone (including but not limited to appearance, color, size) and screen (including but not limited to background, UI, and graphics) may be slightly different. Please refer to the actual product.
The data on the page are theoretical values from Ulefone lab based on specific test environment (see details at specific description). In actual use, there may be slight differences due to product differences, software versions, use conditions and environmental factors, so please refer to the actual situation as final.
The preceding specifications are theoretical values based on product design. Some features and specifications may vary across markets. To
